Cantilever Racking


Cantilever Racking

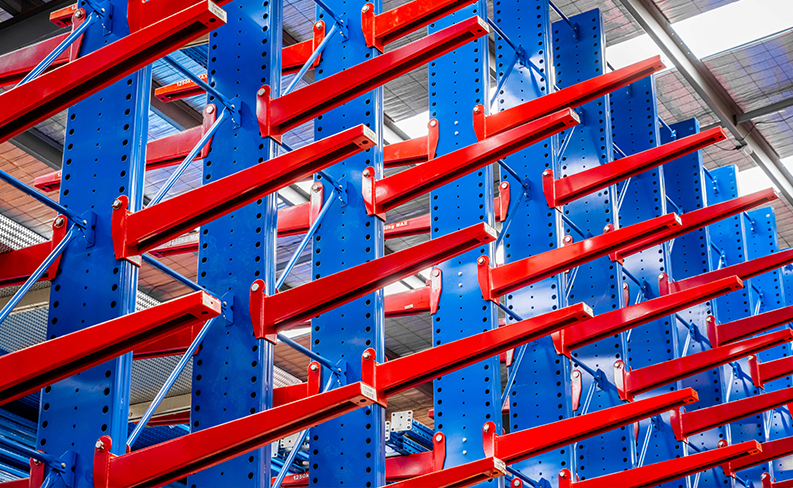

Cantilever Racking is a pack handling system for storing items that are bulky, awkward, irregular-shaped, or long-length loads that are not easily managed in standing pallet racking.

• A single load-bearing upright, allowing for a greater level of flexibility for materials and products to be readily stored, identified, and retrieved.

• A single load-bearing upright fitted with a series of adjustable arms. This feature allows products to be stored without being limited to the outside dimension of the rack structure.

• A free-standing storage rack, maximising floor space and simplifying material handling for loading and unloading stock.

  • Pipes
  • Plasterboard
  • Timber
  • Furniture
  • Girders
  • Steel bars
  • Large coils
  • Carpet rolls

    • Suitable for hand stacking or forklift load applications in a single or a double-sided configuration.

    Available in a range of powder coat colours for display purposes or a hot-dip galvanise for external or environmental considerations.

    Standard Product Specifications:

    • Column Heights – 2000mm, 2400mm, 3000mm, 3600mm, 4200mm

    • Arm Lengths – 700, 900, 1200mm

    • Column Centers – 900, 1200 1500 and 1800mm

    • Weight Carrying Capacity – Maximum load 450 kg per arm (subject to design)

    • Finish – Powder Coat or Hot Dipped Galvanised

    • Custom design and manufactured – Suitable for specific applications.

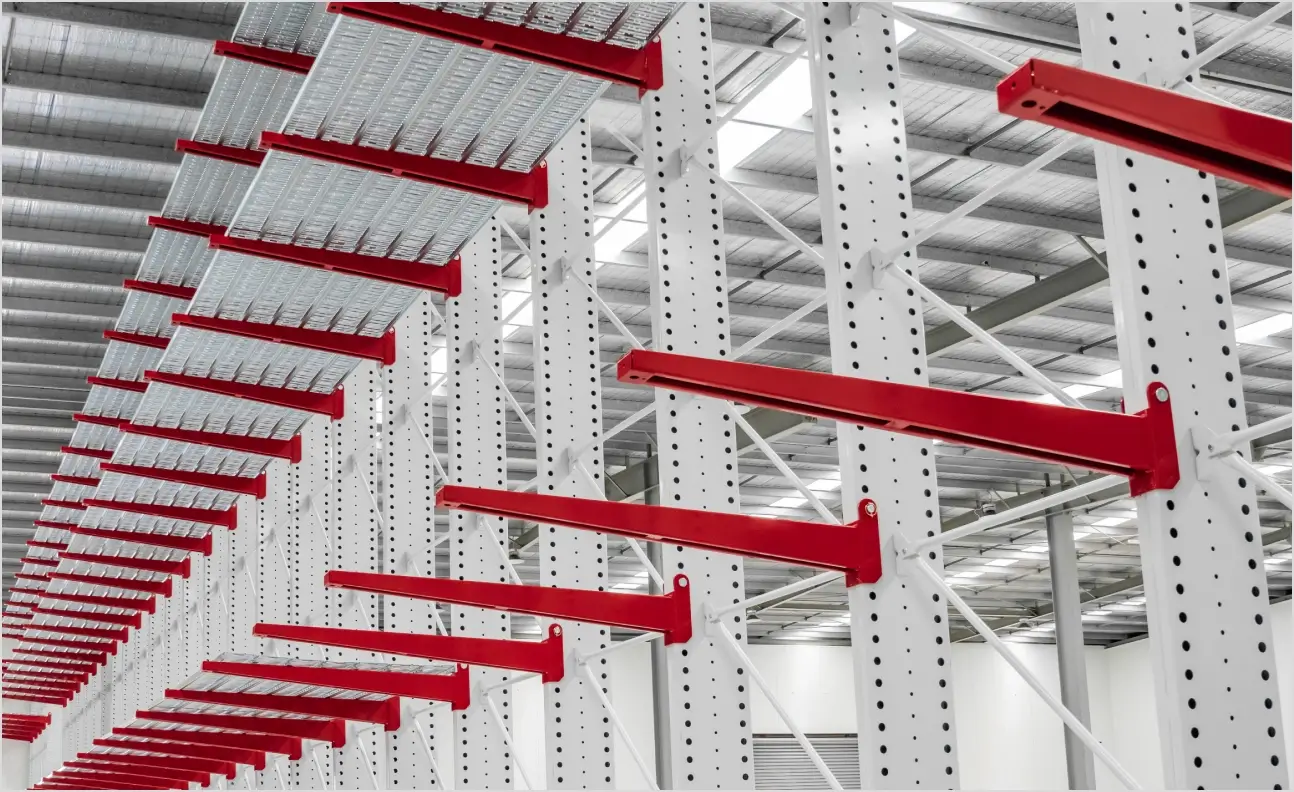

    Available in single or double-sided configurations. They can be designed for front-loading or to be loaded by overhead crane or live load application.

    Standard Product Specifications

    • Column Heights – 2400mm,3000mm,3600mm,4200mm, 4800mm,5400mm, 6100mm, with custom heights available on request

    • Arm Lengths – 600,750, 900, 1200 and 1500mm

    • Column Centers – 900, 1200, 1500, 1800 and 2100mm

    • Weight Carrying Capacity – Arm – Maximum load 1000kg (subject to design )

    • Finish – Powder Coated and Hot Dipped Galvanised

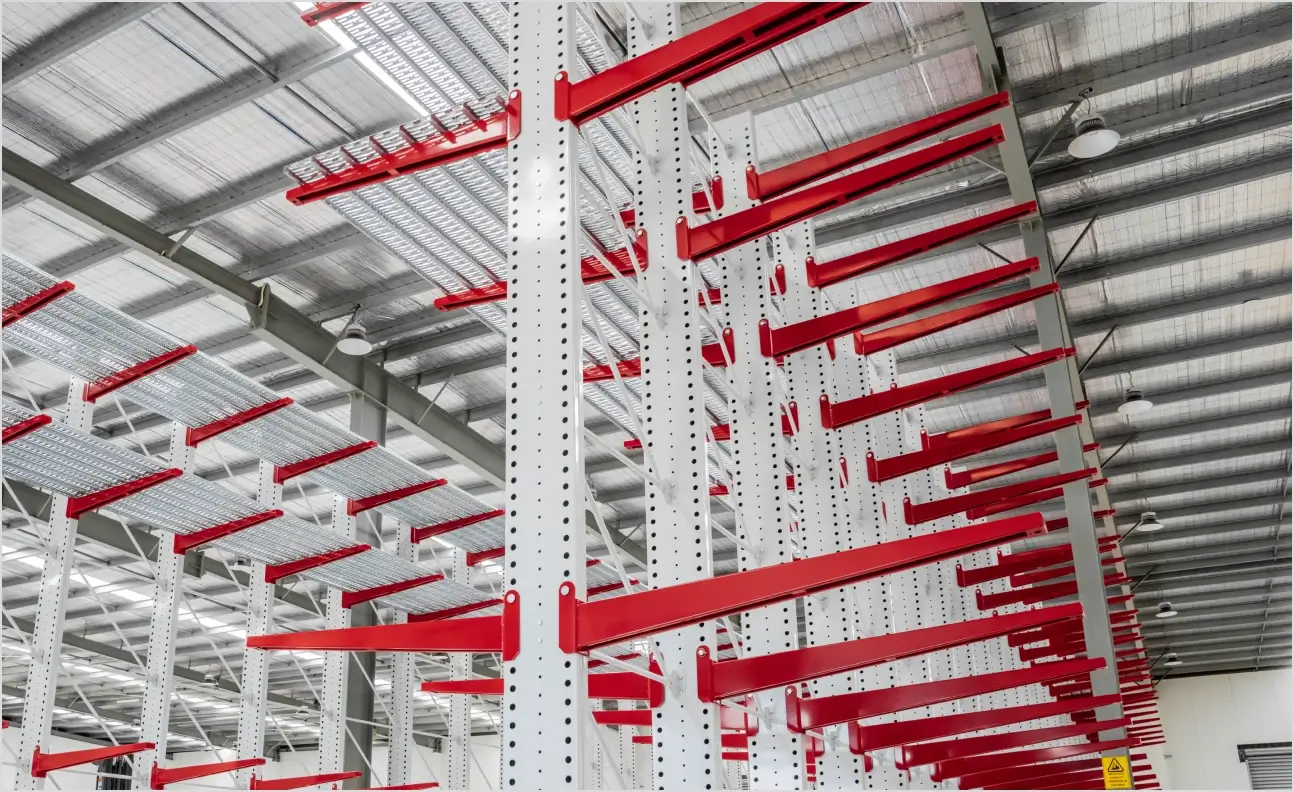

    Available in single or double-sided configurations. They can be designed for front-loading or to be loaded by overhead crane or live load application.

    Standard Product Specifications

    • Column Heights – 4800mm, 5400mm and 6100mm with custom heights available on request

    • Arm Lengths – 900, 1200 and 1500mm

    • Column Centers – 1200, 1500, 1800 and 2100mm

    • Weight Carrying Capacity – 1300kg per arm

    • Finish – Powder Coated and Hot Dipped Galvanised

    All racking complies with AS4084-2023 Australian Standards.

    • Shelves and storage trays

    • Divider pins

    • Bracing and struts (for additional strength)

    • Guards and end stops

    • Signs (load, identification, location, safety etc.)

    • Ground guidance rails to prevent racking damage
